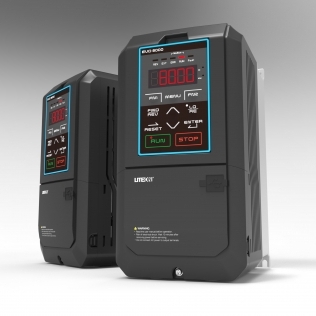

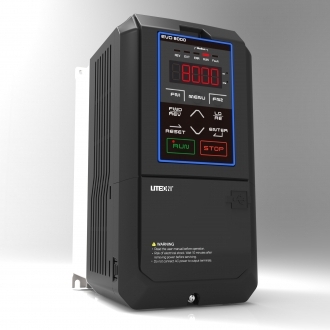

EVO8000 Series - Your Best Answer to High-End Applications !

- Premium current vector AC drive

- Drives induction motors, interior permanent motors and surface permanent motors

- Open-loop/ Closed-loop current vector control

- Dual rating fuction(normal/heavy duty)

- 30kW and below builds in braking transistor

- Provides terminal of DC bus for external DC reactor and braking module

- Speed search/traverce function built-in

- Quick-release fan design for easy replacement

- OptionalLCD keypad allows multi-language and as copy unit

- Supports Profibus-DP/CANopen/etc industrial communications

- BothRS-485 and USB port built-in for easy connection with PC

- LiteON Studio PC software allows quick control of all data

0001_6_new
00003_2_new
00004_2_new
80002_2_new



Specifications

Control Method
V/F, V/F+PG, IM / PM Current vector control + PG, IM / PM Sensorless current vector control
Ouput Frequency
1~400Hz
Frequency Accuracy
Digital Input : within ±0.01% of the max. output frequency
Analog Input : within ±0.1% of max. output frequency (-10℃ to +50℃)
Frequency Resolution
Digital Input : 0.01Hz
Analog Output : 1/1000 of max. frequency
Starting Torque
150% / 3Hz(V/F and V/F+PG)
200% / 0.3Hz (IM Sensorless current vector control)
200% / 0r/min (IM/PM Current vector control +PG)
100% / 5% speed under PM Sensorless current vector control
Speed Control Range
1: 40 (V/F and V/F+PG)
1:200 (IM Sensorless current vector control)
1:20 (PM Sensorless current vector control)
1:1500 (IM/PM Current vector control + PG)
Speed Control Accuracy
±0.2% in Sensorless current vector control
±0.02% in Current vector control + PG
Speed Response
10 Hz in Sensorless current vector control
50 Hz in Current vector control
Acc/Dec Time
0.0 ~ 6000.0
Braking Torque
approx. 20%
V/F Pattern
15 fixed and 1 programmable
Overload Capacity
120% for 1 min. within every 10 min. (Normal Duty)
150% for 1 min. within every 10 min. (Heavy Duty)
Parameter Function
Torque Control, Speed/Torque Control Switching, Feed Forward Control, Zero Speed Holding, Momentary Power Restart, Speed Search, Overtorque/Undertorque Detection, Torque Limit, Multi-Step Speed, Acc./Dec. Switch, S-Curve Acc./Dec., 3-Wire Sequence Control, Auto-Tuning、Cooling Fan ON/OFF Switch, Slip Compensation, Torque Compensation, Frequency Jump, Upper/lower Limits for Frequency Command, DC Braking at Run/Stop, PID Control including Pause Function, Energy Saving Mode, Fault Restart, Kinetic Energy Braking, Auto Voltage Adjustment, Overvoltage Suppression, Traverse, etc.
Area of Use
Indoor without corrosive gas/liquid or flammable gas/liquid/oil mist/dust
Ambient Temperature
-10℃ to +50℃, -10℃ to +40℃ (NEMA1), below 90% RH without froze or condensation
